PRODUCTSProducts

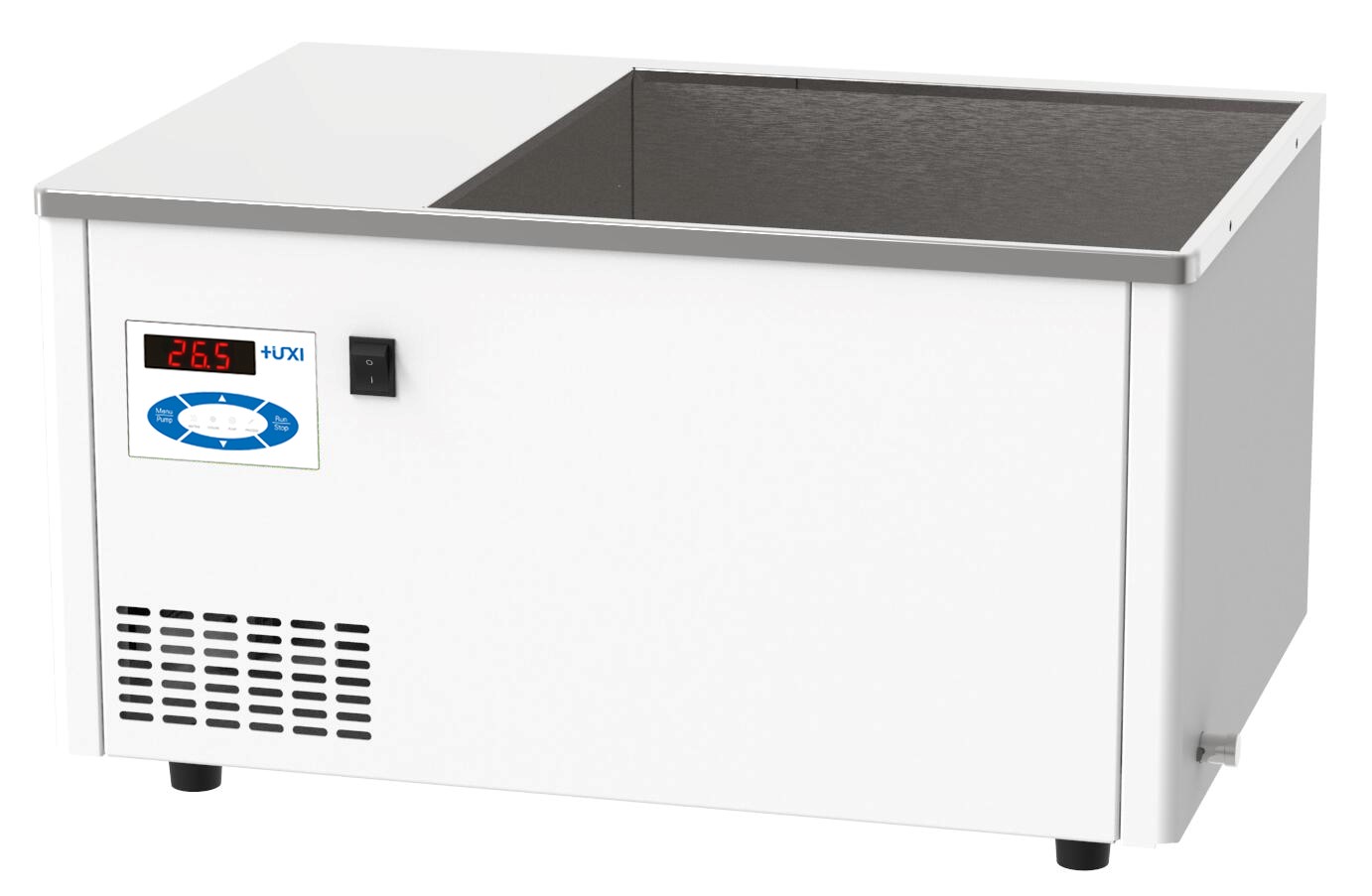

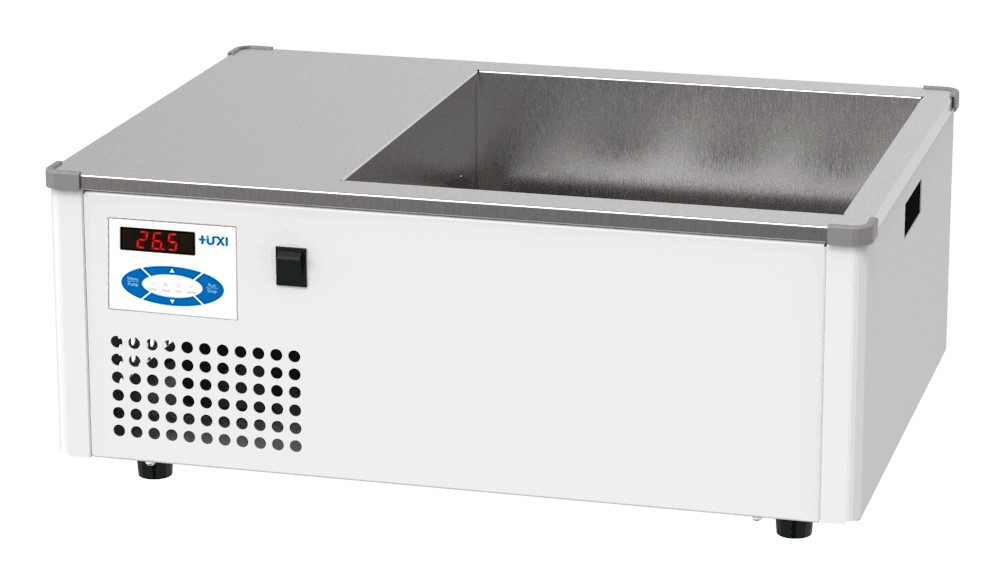

Heating and cooling water bath

Product Model:HLG-40

Product Quote:

Related Products:

Online Download
  • Product Description
  • Video Show
  • Optional Accessory

1Application





HLG Series Heating and cooling thermostatic water bath with the function of heating and cooling, built-in circulating pump for internal circulation of the liquid in the tank, so the uniformity is high, up to ± 0.1 , widely used in medical and health care, colleges and universities, scientific research units and industrial and mining enterprises, etc. to do evaporation, drying, concentration, thermostatic heating of chemical, serological examination, thermostatic cultivation of biological products, sterilization and boiling.



2Features



l  LED display, waterproof and oil-proof operation panel, four-heat design, heating, cooling, cycle indicator display

l  Large opening for more samples for thermoregulation.

l  Heating and cooling function, heating and cooling are integrated in one unit

l  High-quality stainless steel in contact with liquids.

l  With internal circulation function, good temperature uniformity, internal circulation can be controlled

l  Standard with sample holder, height 50mm.

l  High-temperature alarm and dry-burn protection





3、Technical Parameters

Model

HLG-40

Item No.

103700500

Temperature range    ()

-5~100

Temperature stability ()

±0.05

Temperature uniformity ()

±0.02

Cooling capacityw

750(20)

Heating power (w)

2000

Pump flow rate (L/min)

12

Pump pressure(bar)

0.8

Alarm function

yes

Bath volume( L)

40

Bath size  (mm)

400*400*250

Overall dimensions (mm)

640*440*350

Packing size (mm)

800*590*355

Net weight (kg)

44

Gross weight(kg)

45
