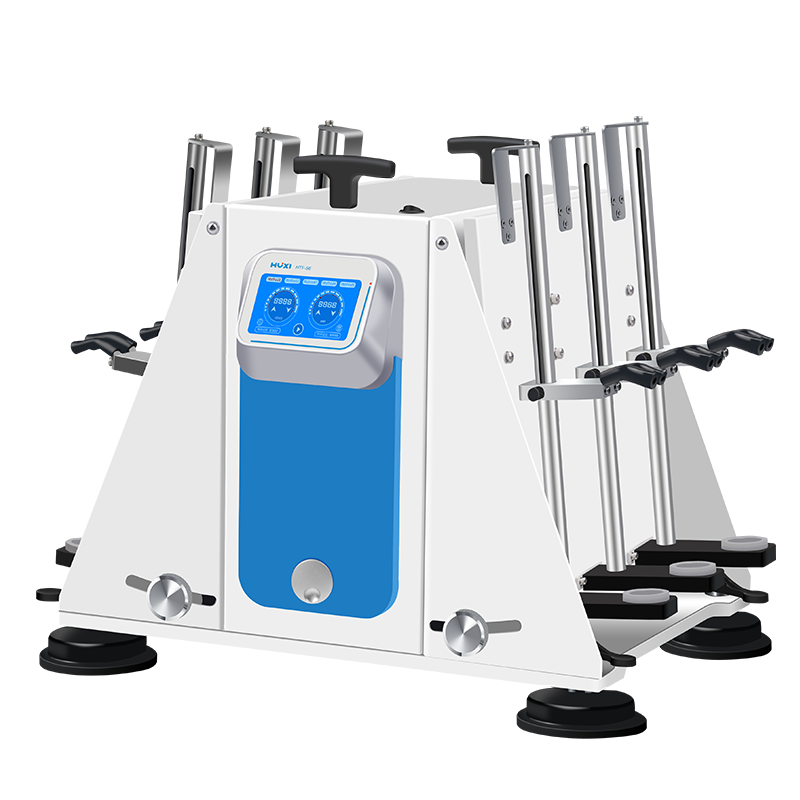

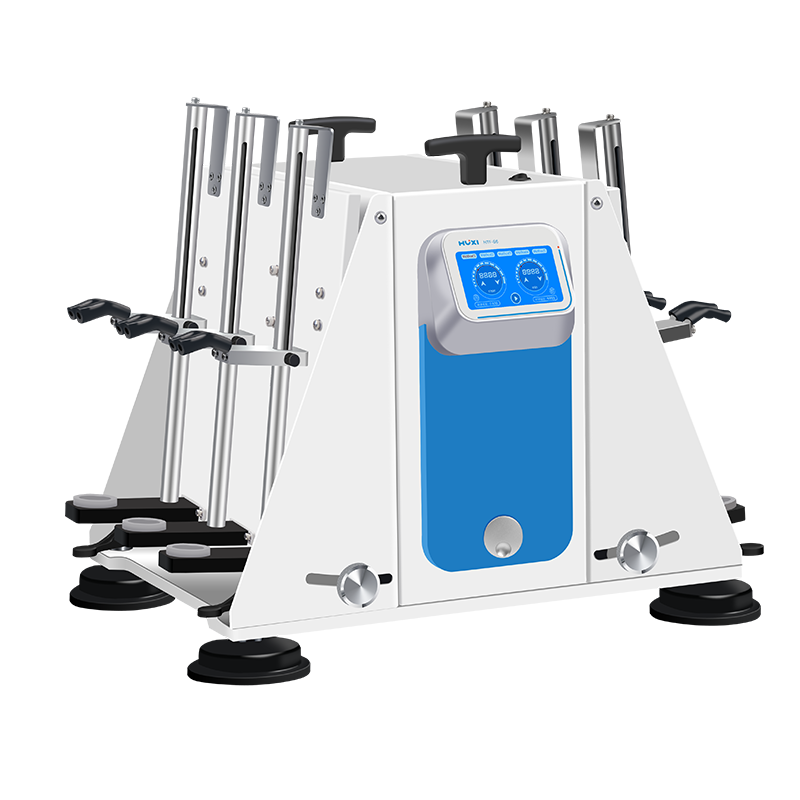

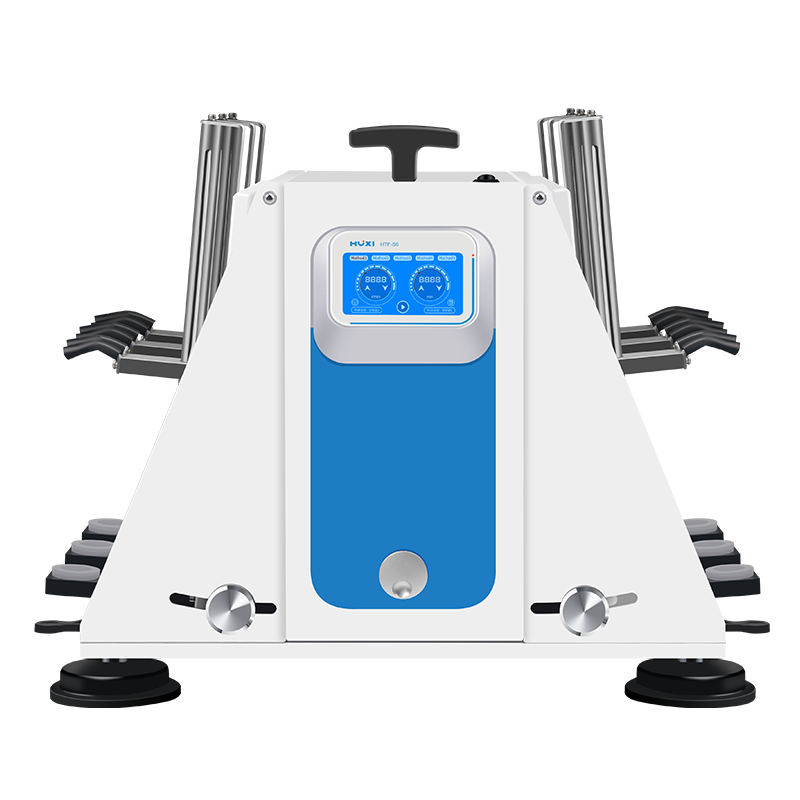

Dispensing Funnel Shaker
Product Model：HTF-S6
Product Quote：Negotiable
Related Products：
Online
Download
Product Application:
HTF-S6 Dispenser Funnel Oscillator adopts self-developed process design, with adjustable oscillation time, large vibration amplitude, fast speed, sample holder can be applied to a variety of specifications of the dispensing funnel, up to 6 samples at the same time, which can greatly improve the work efficiency and reduce the work intensity. Widely used in food testing, chemical extraction, mixed extraction and other occasions. Such as the experiment of ester synthesis, the extraction of organic compounds, the extraction of oil in water, the extraction of environmental hormones, the dissolution of heavy metals in the soil experiment, the determination of pesticides and food additives in crops.
Product Features:
Small size, low noise, smooth and reliable operation；
Wide voltage design, wider application range；
The sample tray can slide freely, easy to place or take samples；
Suitable for different sizes of dispensing funnel, the range is 250ml~2L；
Humanized control, digital display timing function, greatly improve the working
efficiency;
LCD touch screen operation display oscillation speed and running time, the
value is clear at a glance;
The oscillation speed is equipped with stepless speed adjustment function and
buffer function when starting and changing speed, which reduces the impact of
the sample on the container.
Product parameters： | |
Model | HTF-S6 |
Power Supply | 220~240V |
| Frequency | 50-60hz |
| Power | 650w |
| Amplitude | 40mm |
| Speed Range | 60-300rpm |
| Speed Display | su4.3-inch capacitive Screen |
| Timer Function | Yes |
| Timing Range | 0-9999min |
| Shaking Mode | Vertical |
| Motor Type | Servo Motor |
| Dispensing Funnel Specification | 250ml~500ml (customized 2L) |
| Allowable ambient temperature(°C) | 5-40 |
Allowable ambient humidity(%) | 80 |
Exterior Dimension(mm) | 560*440*520 |
| Packing Dimension (mm) | 700*560*600 |
| NW(kg) | 52 |
GW(kg) | 55 |
