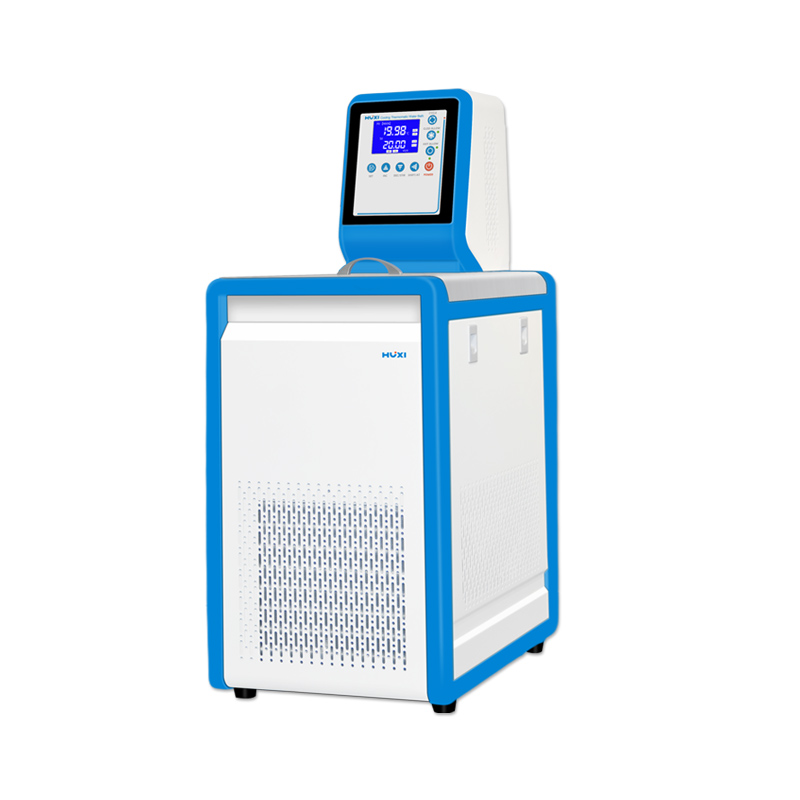

Thermostatic Bath
Feel free to call us for more information
400-808-1508
Products
Online
DownloadProduct application:
The thermostatic bath adopts the latest international advanced refrigeration system with stable and reliable performance.
With internal and external circulation, widely used in research departments such as petroleum, chemical industry, electronic instrumentation, physics, chemistry, bioengineering, medicine and health, life science, light industry and food, physical property testing and chemical analysis, colleges and universities, enterprise quality inspection and production departments. It can also provide users a hot and cold controlled, uniform and constant temperature liquid environment when working, and conduct constant temperature tests or tests on test samples or products. It can also be used as a power source or cold source for direct heating or cooling and auxiliary heating or cooling.
Main features:
.●SS304 table and inner tank, the refrigeration coil has added positioning and surface treatment, provent shaking or corrosion and rust during transportation or use;
●Fully enclosed motor impeller to prevent potential safety hazards;
●Protection: Heating tube low liquid level protection, light and sound alarm;
●Fully enclosed compressor, refrigeration system has protection for overheating and overcurrent;
●The circulation interface and drain port are made of SS304 spagoda joints, quick and reliable to install, built-in drain valve design;
Product parameter:
Model | HLC-3030 |
Item No. | 1032251001 |
Tank Volume(L) | 30 |
Temperature Range(℃) | -30~100 |
Heating Power(W) | 2000 |
Display Accuracy(℃) | 0.1 |
Temp. Control Accuracy(℃) | ±0.1 |
Inner Tank Size(mm) | 400*325*230 |
Tank Opening Size (mm) | 310*280 |
Sample Container Size(mm) | 300*280 |
External Circulation Flow(L/min) | 13 |
Pump Head(M) | 5 |
Pump pressure(bar) | 0.1 |
Temperature Display | LED |
Cooling Input Power(W) | 170 |
External Connector Size | 10mm Pagoda Connector |
Instrument size (mm) | 670*490*1150 |
Packaging size (mm) | 750*570*1270 |
NW(kg) | 60 |
GW(kg) | 70 |
Package | Wooden pallet + honeycomb box |
Optional Function | Temperature control accuracy 0.01℃ |
