Horizontal Thermostatic Bath
Feel free to call us for more information
400-808-1508
Products

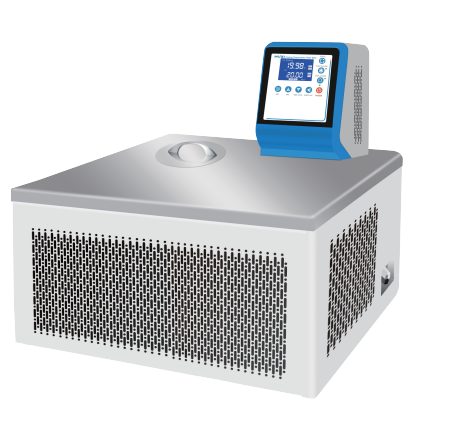

Horizontal Thermostatic Bath
Product Model：HLC-0506W
Product Quote：
Related Products：
Online
Download
Application
Horizontal low-temperature thermostat, our company optimised on the basis of the original thermostat, small volume, exquisite appearance, can be used as a viscometer special thermostat, can also be used for other thermostatic experiments, Φ110mm large opening can be put 500ml and other different specifications of beakers or containers, can be fitted with different specifications of stainless steel bracket base, to meet the different specifications of the beaker. The temperature of the liquid in the tank is directly transferred to the test sample, and the rotor of the rotational viscometer can be conveniently put into the beaker for testing. Rotational viscometer test special thermostat tank fully in line with the JJG 1002-2005 rotational viscometer test specification in the outer cylinder and no outer cylinder two test methods.
Product Features
● SS304 table and inner tank, the refrigeration coil has added positioning and surface
treatment, provent shaking or corrosion and rust during transportation or use;
● Fully enclosed motor impeller to prevent potential safety hazards;
● Protection: Heating tube low liquid level protection, light and sound alarm;
● Fully enclosed compressor, refrigeration system has protection for overheating and
overcurrent;
● The circulation interface and drain port are made of SS304 spagoda joints, quick and
reliable to install, built-in drain valve design;
Technical Parameters
Model | HLC-0506W |
Item No. | 1032252001 |
Tank Volume(L) | 6.5 |
Temperature Range(℃) | -5~100 |
Input Power(W) | 600 |
Current(A) | 3-4 |
Power Supply | 220V 50Hz |
Heating Power(W) | 1000 |
Display Accuracy(℃) | 0.1 |
Temperature Control Accuracy(℃) | ±0.1℃ |
Temperature Fluctuation(℃) | ±0.05℃ |
Inner Tank Size(mm) | 325*165*130 |
Tank Opening Size (mm) | Φ110 |
Circulation Mode | Inner and outer circulation |
Circulation Flow(L/min) | 8 |
Pump Head(M) | 3 |
Temperature Display | LCD |
Control Mode | PID microchip control technology |
Cooling Power(W) | 180 |
Level Alarm Function | Standard |
Instrument size mm | 450*410*470mm |
NW(kg) | 22 |
GW(kg) | 25 |
Package | Corrugated Box |
Optional Function | Temperature control accuracy 0.01℃ |
