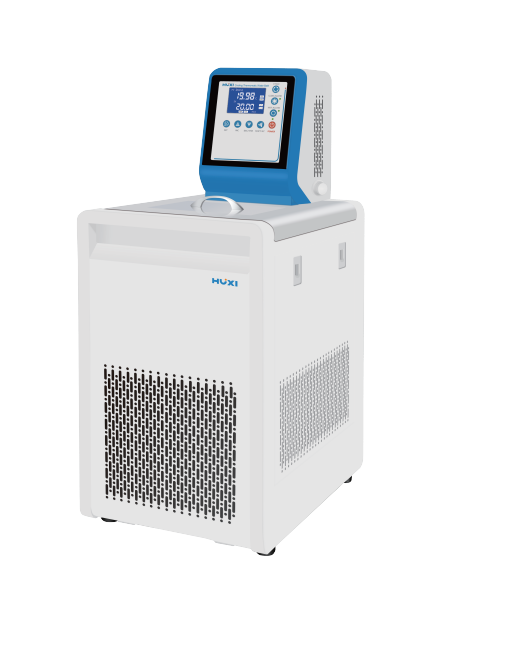

Magnetic Stirring Thermostatic Bath
Product Model：HLM-4006
Product Quote：
Related Products：
Online
Download
Application
Use the latest international advanced refrigeration system with stable and reliable performance.Internal and external circulation,widely used in research departments such as petroleum, chemical industry, electronic instrumentation, physics, chemistry, bioengineering, medicine and health, life science, light industry and food, physical property testing and chemical analysis, colleges and universities, enterprise quality inspection and production departments. It can also provide users a hot and cold controlled, uniform and constant temperature liquid environment when working, and conduct constant temperature tests or tests on test samples or products.
It can also be used as a power source or cold source for direct heating or cooling and auxiliary heating or cooling.
Product Features
Large backlight LCD display
ABS mold design, streamlined and beautiful;finely crafted,humanized R-rounded
corner design,prevent operators from injuring of the chassis; foam plastic packag
ing, to avoid damage during transportation;
High-performance motor, low noise, low heat, fully enclosed, long life; use of
heat-free circulation pump to avoid the water pump affecting the tank temperature
due to its own heat generation;
SS304 table and inner tank, the refrigeration coil has added positioning and surface
treatment, provent shaking or corrosion and rust during transportation or use;
Fully enclosed motor impeller to prevent potential safety hazards;
Protection: Heating tube low liquid level protection, light and sound alarm;
With power-off protection and over-temperature alarm functions;
Fully enclosed compressor, refrigeration system has protection for overheating and
overcurrent;
The surrounding panels are flexibly disassembled and assembled, easy to clean;
Instrument works stably and reliably, easy and safe to operate, with temperature
calibration and self-tuning functions;
The circulation interface and drain port are made of SS304 spagoda joints, quick
and reliable to install, built-in drain valve design;
Standard with two circulating silicone tubes + insulation sleeve.
The Parameters
Model | HLM-4006 |
Item No. | 1032261001 |
Tank Volume(L) | 6 |
Temperature Range(℃) | -40~100 |
Rotational speed(rpm) | 50-1800 |
Total Power(W) | 1500 |
Heating Power(W) | 1000 |
Display Accuracy(℃) | 0.1 |
Temp. Control Accuracy(℃) | ±0.1 |
Tank Opening Size (mm) | 180*140 |
External Circulation Flow(L/min) | 8 |
Pump Head(M) | 3 |
Pump pressure(bar) | 0.1 |
Temperature Display | LED |
Cooling Input Power(W) | 170 |
External Connector Size | 10mm Pagoda Connector |
Inner Tank Size(mm) | 270*200*130 |
Instrument size (mm ) | 510*430*880 |
Packaging size (mm ) | 600*500*990 |
NW(kg) | 46 |
GW(kg) | 56 |
Package | Wooden pallet + honeycomb box |
Optional Function | Temperature control accuracy 0.01℃ |
