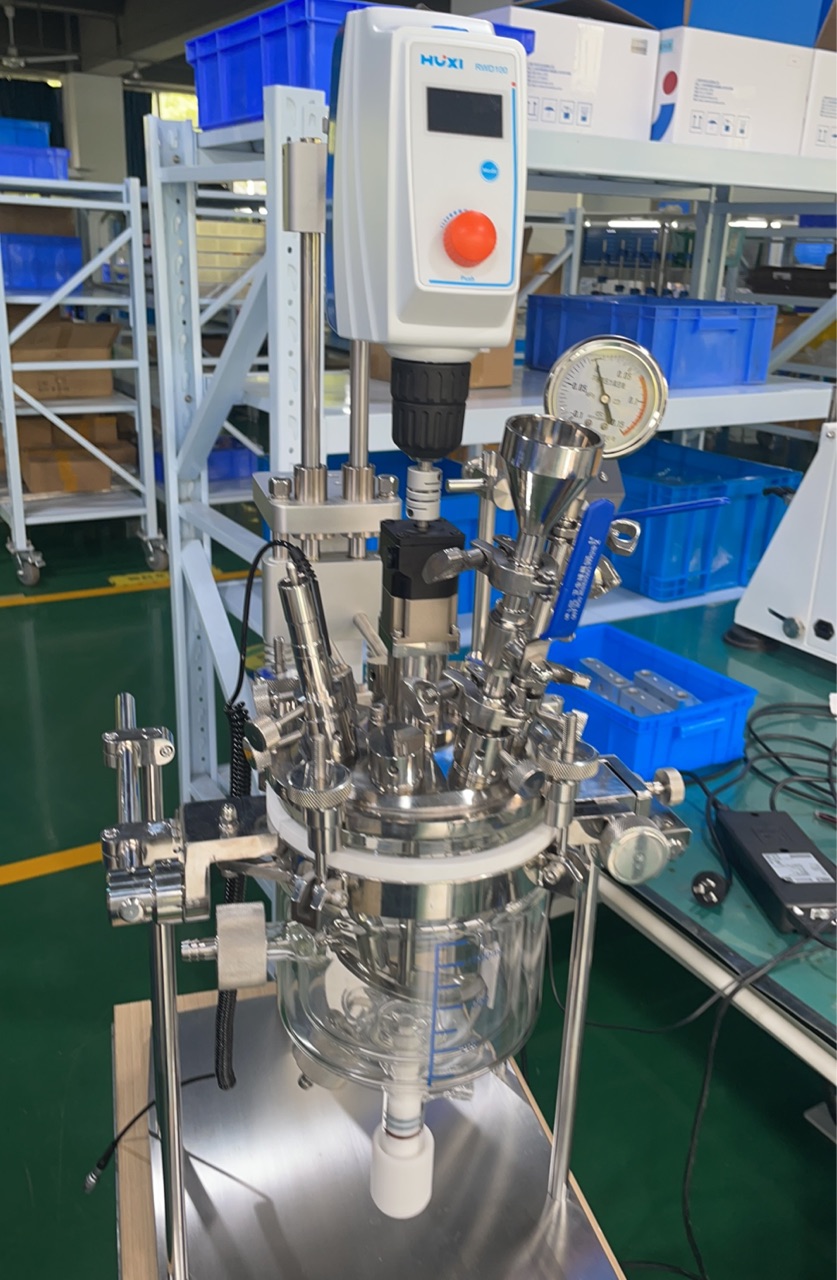

HR-1LAS Laboratory vacuum emulsification reactor

Application：

● Laboratory vacuum emulsification reactor: Under the environment of vacuum or pressure, to achieve the material dispersion, emulsification, homogenization, mixing and other processes.It can be equipped with a variety of high viscosity agitators, high shear homogenizer or emulsifiers and reliable vacuum sealing systems and temperature control systems. A variety of sensing and testing systems can simulate industrial  production in the laboratory.

● Main Applications:

①　Production of cream, lotion and emulsions

②　Pharmaceuticals and cosmetics

③　Disperse fine solids into liquids or dissolve them

④　Suspend additives and solid polymer in mineral oil

⑤　Wet grinding in fluids and polymers, dispersing solids, fibers, high-viscosity substances, cell tissues, etc.

⑥　Handling daily necessities and food

⑦　Polymerization

⑧　Extracting Enzymes in the Body

⑨　Others

Main Features：

l The homogeniser and Mixer are adopt with brushless motors to provide a brushless working scenario and prevent carbon powder from contaminating the samples;

l User-friendly design:

①　One-key electric lift reactor lid; electric lift with anti-pinch function;

②　The reactor lid is supported by two springs and has a cushion function to prevent it from being damaged;

③　The kettle body can be turned over, conveniently for dumping materials;

④　The kettle body is equipped with a turnover hot and cold water pipe interface, which is convenient for dumping samples;

⑤　The kettle cover has a screw fixing slot, which is convenient for fixing;

⑥　The cover screws are equipped with anti-collision devices to prevent the kettle from being knocked;

⑦　Homogenizer working head with safety protection buckle to prevent bumping the kettle;

⑧　Different types of mixers can be selected according to the viscosity and volume of the sample.

l SS304 base plate and support rod,easy for cleaning;

l Can be connected to HUXI online emulsification for multi-machine emulsification, to improve efficiency and effect;

l The stirring bar is connected with the kettle body by anchor claw, which greatly improves the stirring jitter and noise;

l Anchor type PTFE wall scraping stirring paddle to prevent the sample from sticking to the wall and clumping;

l External cooling water circulation refrigeration can be connected to control the sample temperature.

Techncial Parameters：

Packing List：
